19454E060035
Model6X35
dNominal Diameter · mmM6
lLength · mm35
d0Drill Diameter · mm6
hnomNominal Anchorage Depth · mm40
tfixFixture Thickness (max) · mm5
Available options
Material
2 sizes
| Part number | Model | dNominal Diameter · mm | lLength · mm | d0Drill Diameter · mm | hnomNominal Anchorage Depth · mm | tfixFixture Thickness (max) · mm | Quantity and inquiry |
|---|---|---|---|---|---|---|---|
| 19454E060035 | 6X35 | M6 | 35 | 6 | 40 | 5 | |
| 19454E060065 | 6X65 | M6 | 65 | 6 | 40 | 35 |
19454E060065
Model6X65
dNominal Diameter · mmM6
lLength · mm65
d0Drill Diameter · mm6
hnomNominal Anchorage Depth · mm40
tfixFixture Thickness (max) · mm35
Product description

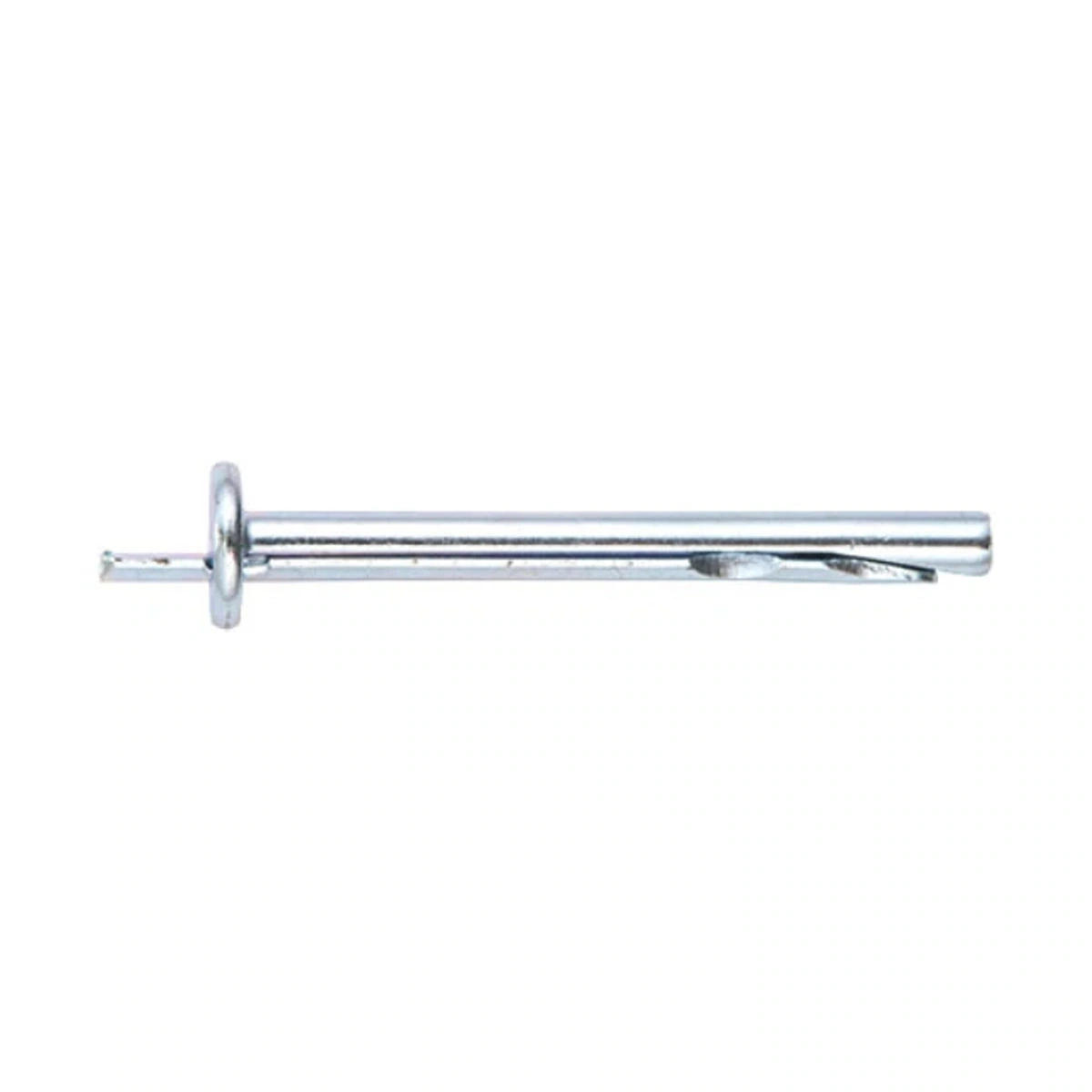

Ceiling Anchor is available in M6 diameters and 35–65 mm lengths. Confirmed supply options include Carbon Steel.
Key features
- Form and dimensions follow the customer drawing or sample.
Applications
- Used in assemblies where no standard part fits, replacement parts made to an existing sample, and fastening details specified on a customer drawing.
Standard and order documents
The selected execution standard is the product basis. Published or order-specific documents are shown only when they have been confirmed for this product.
Order assurance
Available options; exact scope is fixed in the quotation or order.EN 10204 3.1 material certificate
Can be included when agreed in the order.
Mechanical test report
Available when the required tests are agreed before production.
Chemical analysis report
Available when the material verification scope is agreed.
Certificate of conformity
Can be issued against the confirmed order requirements.
Dimensional inspection report
Can be provided for the agreed inspection scope.
Batch and lot traceability
Batch or lot references can be recorded for the order; heat references are included only where applicable and available.
Bulk carton packing
Available subject to confirmed piece weight and shipping requirements.
Small boxes with outer cartons
Available when the box quantity and labels are agreed.
Palletized shipment
Available when pallet size and handling requirements are confirmed.
Fumigation-free pallets
Plywood or pressed-wood pallets can be used where ISPM-15 marking is not wanted.
Inner poly bags
Items can be bagged before cartoning to limit moisture and loose parts in transit.
Buyer branding and labels
Available after artwork, label content, placement and the applicable minimum batch are agreed.
Frequently Asked Questions
What documented quality support is available for Ceiling Anchor?
Documents: EN 10204 3.1 material certificate, Mechanical test report, Chemical analysis report. Confirm the required scope and acceptance criteria in the quotation.
Which order and delivery details are already confirmed for Ceiling Anchor?
Confirmed packing options include Bulk carton packing, Small boxes with outer cartons, Palletized shipment, Fumigation-free pallets, Inner poly bags, Buyer branding and labels.
What information should be included in a quotation request for Ceiling Anchor?
Provide the diameter or size, length, material, quantity, delivery destination. Include the drawing revision or sample reference.
